Transverse Fracture of Acetabulum

- See:
      - Associated Transverse & Posterior Wall Fracture
      - T Shaped Fractures
      - AO Foundation Transverse Fracture

- Discussion:
    - transverse frxs extend across both the anterior and posterior columns;

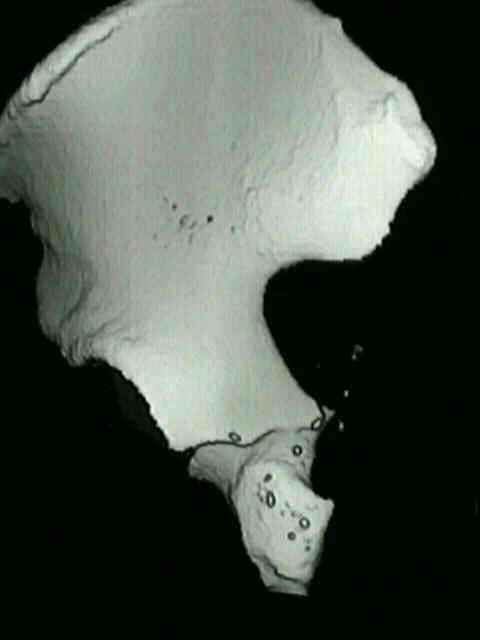

           - frx divides the innominate bone into superior segment containing acetabular
                    roof and intact ilium, & inferior segment consisting of single ischiopubic
                    fragment;

    - classification:
           - if both anterior & posterior columns are broken, then it is called transverse fracture, and if both
                   columns are broken & separated from each other, that is T fracture;
           - transverse fracture are sub-classified according to location relative to the wt bearing dome;
                   - transtectal: fracture courses through the weight-bearing dome (WBD);
                   - juxtatectal: fracture courses above the cotyloid fossa, so that a significant portion of the wt
                            bearing dome is left intact;
                   - infratectal: fracture courses below the wt bearing dome;
           - transverse posterior wall fracture:
                   - may be difficult to reduce in the presence of a transverse transtectal component, large posterior
                             wall fragment, or w/ pubic ramus fracture;
                   - mechanism: blow directly upon greater trochanter;
                   - stemming from the lateral compressive force these fracture may also be assoc
                              w/ central femoral head dislocation;


- Radiographs:
    - ilioischial and iliopectineal lines are both disrupted, but there will be no involvement of the obturator
             ring (otherwise fracture would be a T fracture);
    - assesment of stability:
             - in the study by Vrahas, et al 1999, a cadaveric biomechanical study was performed to determine the relative stability
                   of anterior column, posterior column, and transverse fractures;
                   - they noted that transverse acetabular fractures with medial roof-arc angle (AP radiograph) of 45 degrees or less were
                               unstable and required ORIF;
                   - ref: The effects of simulated transverse, anterior column, and posterior column fractures of the acetabulum on the stability of the hip joint.





- Exposure:
    - Kocher-Langenback:
          - most transverse frx are exposed w/ posterior approach, especially if the displacement and rotation is posterior;
          - transverse frx, posterior wall & posterior column fractures, & T-type fractures may be exposed using Kocher-Langenback;
          - in many cases a trochanteric osteotomy will be required inorder to optimize the exposure;
          - references:
                 - Quality of radiographic reduction and perioperative complications for transverse acetabular fractures treated by the Kocher-Langenbeck approach: prone versus lateral position.
                 - Treatment of Transverse with or without Posterior Wall Fractures of Acetabulum Using a Modified Smith-Petersen Combined with Kocher-Langenbeck Approach.

    - ilioinguinal approach:
          - indicated for high transverse frx and for frx w/ anterior displacment and/or w/ anterior rotation;
          - ilioinguinal approach should also be chosen for transverse fractures which course across the acetabulum from a proximal-
                     anterior to a distal-posterior direction;
          - ref: Patients undergoing surgical hip dislocation for the treatment of acetabular fractures show favourable long-term outcome.

- Reduction:
    - for reduction of these frx pt is generally prone & Kocher Langenbeck approach is used;
    - reduction technqiue is similar to that used for posterior column frx;
    - usually the two screw technique is used to control displacement while rotational lever is placed to control the ischial tuberosity;
    - as rotational lever is being applied, the entire ischiopubic segment is rotated rather than the posterior column alone;
    - reduction of anterior portion of transverse frx is assessed by palpation of quadrilateral surface & pelvic brim thru greater sciatic notch;
    - insertion of Schanz screw:
            - w/ the posterior approach, reduction can be facilitated by inserting a Schanz screw into the ischium just inferior to the
                      subcotyloid gutter;
            - T chuck is applied over the the Schanz screw, which is then used to rotate a displaced posterior column frx into
                      a reduced position;
            - surgeon's other hand can guide the reduction by palpating the quadrilateral surface;

- Fixation:
    - lag screw spans transverse frx from a proximal to a distal direction;
          - long 6.5 mm cancellous screw transverses the anterior portion of frx into the superior pubic ramus;
          - lag screw is inserted into retroacetabular surface and is directed toward the anterior column;
          - following lag screw, a plate is placed along retroacetabular surface;
    - plate fixation:
          - 3.5 mm reconstruction plate is applied along posterior column, immediately behind the acetabulum;
    - in the report by Chang et al, the authors evaluated the strength of lag screw fixation compared with traditional fixation techniques
          of transverse acetabular frx;
          - 10 cadaveric pelvic specimens with bilateral, transtectal transverse acetabular fractures were used for this study;
          - right acetabular fractures were fixed with a 5-hole plate and four screws with the central hole spanning posterior fracture site;
          - left acetabular fractures were fixed w/ 2 lag screws, 1 each in the anterior and posterior columns, or with a screw and wire
                      construct stabilizing both columns;
          - plate and screw construct showed significantly greater yield and maximum strength when compared with the two lag screws;
          - stiffness of lag screw method was 39% higher than that of the plating method, but this result was not statistically significant;
          - ref: Comparative Strength of Three Methods of Fixation of Transverse Acetabular Fractures

- Screw Placement in the Ischial Tuberosity:
    - anatomical hazards:
          - the internal pudendal bundle usually lies 1.5 cm from the medial posterior margin of the ischial tuberosity;
          - internal pudendal bundle passes out of greater sciatic foramen, passes around sacrospinous ligament, over internal obturator
                       muscle (just medial to tuberosity) and then into lesser foramen;
          - excessively medially angulated screws may injure the internal pudendal;
          - at 2 cm below inferior acetabular margin, hamstring origin is encountered (and therefore dissection below this point is avoided);
    - technique of insertion:
          - maximal purchase is achieved w/ entry into the tuberosity 5 or 10 mm medial to the lateral margin of the tuberosity and are
                     directed inferiorly;
          - at the level of the inferior acetabular margin, direct the screw 35-40 deg caudally;
          - at 1 cm below the inferior acetabular margin, direct screws 45-50 deg caudally;
          - at 2 cm below the inferior acetabular margin, direct screws 50-55 deg caudally
