Lateral Plateau Frx: Approach & Fixation


- Discussion: Tibial Plateau Frx Menu
    - lateral plateau frxs include:
          - type I fractures
          - type II fractures
          - type III fractures
          - local compression frx which are similar to type iii frx

- Surgical Stratedgy:
    - extensile surgical approach that exposes whole frx zone & adjacent normal tissue;
    - comminuted type II fractures will often require more extensive exposure than type I fractures, however, in both cases, "booking open" the fracture
             site will yield exellent access to the entire lateral compartment;
    - fixation strategy involves ORIF of comminuted articular surface w/ subchondral reduction & buttressing of split frag that forms lateral wall;

- PreOp Planning (positioning, and implants);
    - w/ significant frx shortening (and resultant valgus) consider using AO large distractor & relying on ligamentotaxis to maintain reduction and provide exposure;
           - usually is distractor is placed on the same side as the frx;
           - one pin is inserted into the femoral condyle and one in the mide tibia;
    - supine position:
           - tape a rolled sheet onto table (as with a total knee replacement), in order to allow the knee to remain hyperflexed during procedure (when required);
    - supine w/ leg flexed:
           - leg can be positioned as for arthroscopy;
           - a leg holder is applied to the proximal thigh, and the table is broken to allow the knee to flex past 90 deg;
                  - the opposite leg is then held in a GYN leg holder;
                  - this technique allows varus to be applied to the knee which improves fracture exposure;


- Limited Hockey Stick Incision:
     - most useful in situations where only cannulated screws will be used (and plate butressing is not required);
              - if butressing is necessary, consider external fixation (circular frame fixation);
     - statedgy involves booking open fracture site which yields excellent exposure of lateral compartment, especially if arthroscopy is used (placed underneath meniscus);
              - this approach is also especially useful w/ concomitant meniscal tears;
              - this incision should not interfere w/ total knee incision (should it be necessary in the future);
     - technique: (see: lateral capsular anatomy of the knee)
              - incision is made from a point above the fibular head to Gerdy's tubercle;
              - it can be biased either anteriorly or posteriorly to lie directly over the fracture;
              - carry the dissection directly down to the IT band, and then palpate the anterior frx line;
              - split the IT band in line with its fibers directly over the fracture site;
              - fracture site and the joint capsule are now visible;
              - just below joint line, make a horizontal inframeniscal incision, which extends from a point anterior to frx fragment to a point posterior to frx fragment;
              - infra-meniscal incision needs to be large enough to allow the meniscus to be elevated and the frx to be "booked open";
              - once the split fragment is booked open, there should be excellent access to the compartment;



- Longitudinal Incision:
    - most indicated when a butress plate is required;
    - this approach will not interfere w/ a TKR incision if one is needed in the future;
    - slightly lateral parapatellar (or midline incision) is made from about 10 cm above the patella to about 3-4 cm below the lowest extent of the frx;
    - incision is carried directly down to the superificial retinaculum, and a full thickness flap is elevated once underneath the superficial retinaculum;
           - the flap is mobilized laterally and distally, so that with the knee flexed Gerdy's tuberlce is exposed;
    - deep dissection: (see: lateral capsular anatomy of the knee);
           - most important step in reconstruction of any intra articular frx, is to expose fracture w/o devasclarizing the fragments;
           - flex the knee to 90 deg, and incise thru the IT band (along its fibers) directly over the split frx site;

- Anterior Meniscal Detachment:
          - see: lateral meniscus;
          - just below the joint line, make a horizontal inframeniscal incision, which extends from a point anterior to the frx
                 fragment to a point posterior to the frx fragment;
                 - infra-meniscal incision needs to be large enough to allow the meniscus to be elevated and the frx to be "booked open";
          - sharply detach the anterior horn of menisci from its bony insertion;
                  - the anterior horn will later be repaired at the end of the case;
          - this allows the surgeon to pull up on meniscus together w/ the attached capsule, for more optimal view of articular surface;
          - meniscus is retracted proximally, and the joint inspected directly;
                  - if the arthrotomy is made above the meniscus, the meniscus will keep most of articular surface hidden from view;
          - the knee is hyperflexed and internally rotated;
          - meniscal re-attachment:
                  - two small drill holes are made at the origin of the anterior horn and are directed to exit medial to the patellar tendon;
                  - pass a suture thru the meniscus, and use a suture passer to thread the sutures through the drill holes;
          - references:
                  - Meniscal detachment to approach lateral tibial plateau fractures.
                  - The use of an anterior incision of the meniscus for exposure of tibial plateau fractures requiring open reduction and internal fixation.
                  - Meniscal detachment to approach lateral tibial plateau fractures.

- Alternative Extensile Measures:
    - tubercle osteotomy:
           - however, always avoid tubercle osteotomy in bicondylar frx since, this might be the only intact portion of bone anteriorly;
           - if tibial tubercle is already fractured, then it may be detached - as would be in an osteotomy;
    - patellar tendon Z-plasty:
           - contra-indicated if there is concomitant tibial tubercle frx;
           - for improved exposure, consider cutting the patella in a "Z pattern" (longitudinal split w/ half attach to tubercle and half
                  attached to patella) with repair of the tendon with heavy suture at the end of the case (see repair of patellar tendon rupture);
           - in this technique, the adjacent parapatellar retinaculum should be left intact;
    - wide IT band flap:
           - a wide exposure is required for comminuted type II frx;
           - knee is flexed to 90 deg, and the iliotibial band is retracted or split to expose midlateral capsule;
           - incision is made thru the lateral 1/3 of the quadriceps, it is continued down along the lateral edge of the patella,
                  and is then continued down along lateral edge of the patella (incising the lateral retiancular expansion);
                  - the incision is continued distally below the frx line;
           - 2nd deep capsular incision is made thru inferior 1/3 of IT band (crossing Gerdy's tubercle) which is split in line with
                  its fibers so that it intersects with the longitudinal capsular incision;
                  - alternatively capsular incision is carried below Gerdy's tuberlce, & tubercle is then detached w/ osteotome & IT band
                           is left attached to facilitate subsequent wound closure;
                  - this tongue of IT band and capsule is then elevated superiorly off the tibia, elevating the meniscus off the tibia in the process;
                  - this technique has been criticized for devascularizing the frx fragment;

- Reduction:
    - knee is stressed into varus position for visualization of lateral plateau;
    - if a depressed split fracture is difficult to reduce, consider application of a universal distractor to assist w/ the reduction;
    - further periosteal stripping may be necessary to assist w/ reduction;
           - staying w/in periosteal sleeve avoids damage to anterior tibial muscle and anterior tibial artery;

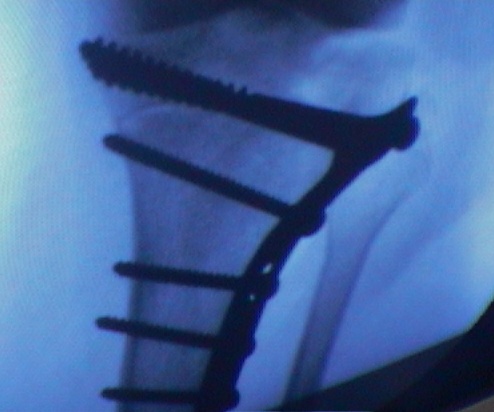

    - depressed articular fragments are elevated with a punch, supported by bone graft, and buttressed with a lateral T or L shaped plate
          - k wire fixation:
                   - k wires are inserted to maintain provisional fixation;
                   - take care that k wire position does not interfere with plate application;
           - bone graft that supports elevated fragments cannot hold them in anatomic relationship and is often secondarily depressed when patient starts ROM exercises;
           - references:
                   - Evaluation of Popliteal Artery Injury Risk With Locked Lateral Plating of the Tibial Plateau
                   - The arterial vascularization of the lateral tibial condyle: anatomy and surgical applications.
                   - Anatomic location of the peroneal nerve at the level of the proximal aspect of the tibia: Gerdy's safe zone.
